Оптический матричный коммутатор Rack 16x16 MEMS
Features
(1) It is characterized by small insertion loss and fast switching speed.
(2) LCD display screen is adopted to display optical path status in a very intuitive way, which is convenient for users to operate.
(3) Optical path switching can be set through the panel keys and serial port instructions.And can lock the keystroke operation through the serial port instruction.
Technical Parameters
Type no. | FSW-16X16-1U-FC |
Working wavelength | 1260 ～ 1650nm |
Test the wavelength | 1310 nm |
Insertion loss | Typ: ＜2.0 dB，Max: ＜2.5dB |
Repetitive | ≤±0.1 dB |
Return loss | ≥45dB |
Crosstalk | ≥50dB |
Wavelength dependent loss | ≤0.50 |
Polarization dependent loss | ≤0.15 |
Switch time | ≤ 50ms |
Optical fiber type | SM（9/125um） |
Connector form | FC/PC |
Monitor the port | RJ45 |
Working power supply | AC: 85 ～ 264 V（50/60Hz） |
Working temperature | -10 ～ + 70℃ |
Storage temperature | -50 ～ + 70°C |
The case type | 19 "standard 2U rack（483×350×89mm） |

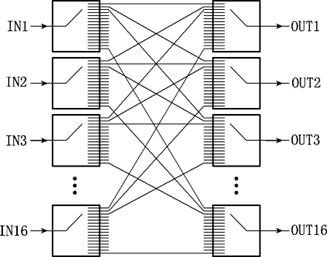

Optical path indicates
